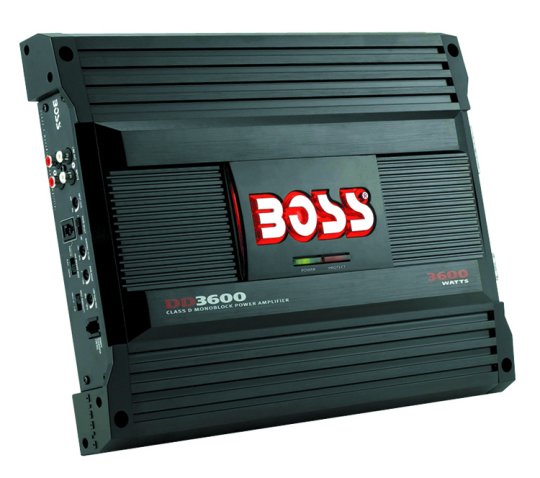

Diablo Class-D 3,600 Watt Monoblock Amplifier

Boss Diablo 3600 Watt Class D Monoblock Amp, Max Power @ 1 OHM: 3600w x 1, Max Power @ 2 OHM: 2400w x 1, RMS Power @ 4 OHM: 1350w x 1, RMS Power @ 2 OHM: 1850w x 1, Frequency Response: 20-1500Hz, Signal-to-noise ratio: > 100 dB, Dimensions: 11”W x 2-5/16”H x 14-3/16”L

Features

• Max Power @ 1 OHM: 3600w x 1 • Max Power @ 2 OHM: 2400w x 1 • RMS Power @ 4 OHM: 1350w x 1 • RMS Power @ 2 OHM: 1850w x 1 • Frequency Response: 20-1500Hz • Signal-to-noise ratio: > 100 dB • Dimensions: 11”W x 2-5/16”H x 14-3/16”L • Remote subwoofer control • Line out (for system building)

• Variable low pass crossover (24dB/oct) • Variable bass boost 0 to +18dB • Strapping capability: Strap two amps together for twice the power • Input sensitivity selector • Variable subsonic filter (24dB/oct) • Phase switch • Power and protection LEDs • 4 per Master Case
