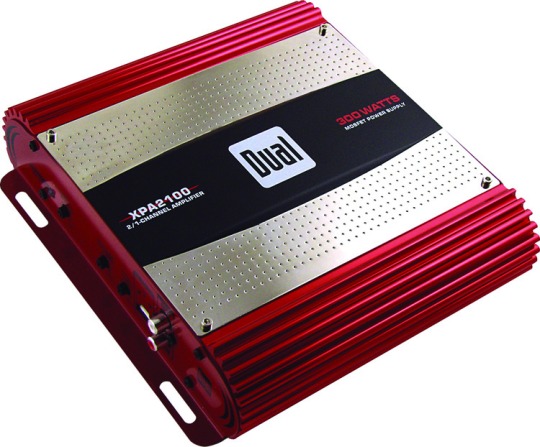

| • 4 ohms at < 1% THD+N: 50w x 2 RMS
• 2 ohms at < 1% THD+N: 75w x 2 RMS • 4 ohms bridged at < 1% THD+N: 150w x 1 RMS • Dynamic power: 300w • Low level inputs (RCA) • High level inputs (Speaker) • Variable input level control • Selectable crossover (high pass/low pass/full range) • Variable high pass crossover • Variable low pass crossover • Variable crossover • 12dB/Octave crossover slope • 12dB Variable bass boost | • PWM MOSFET power supply
• 2 Ohm stable stereo operation • Class AB output design • Stereo/bridged simultaneous operation • Bridgeable operation • Extruded aluminum heatsink • Barrier strip connection terminals • Side mounted controls • Auto-reset thermal overload protection • Speaker short circuit protection • Reverse polarity protection • Bi-color LED status indicator |
