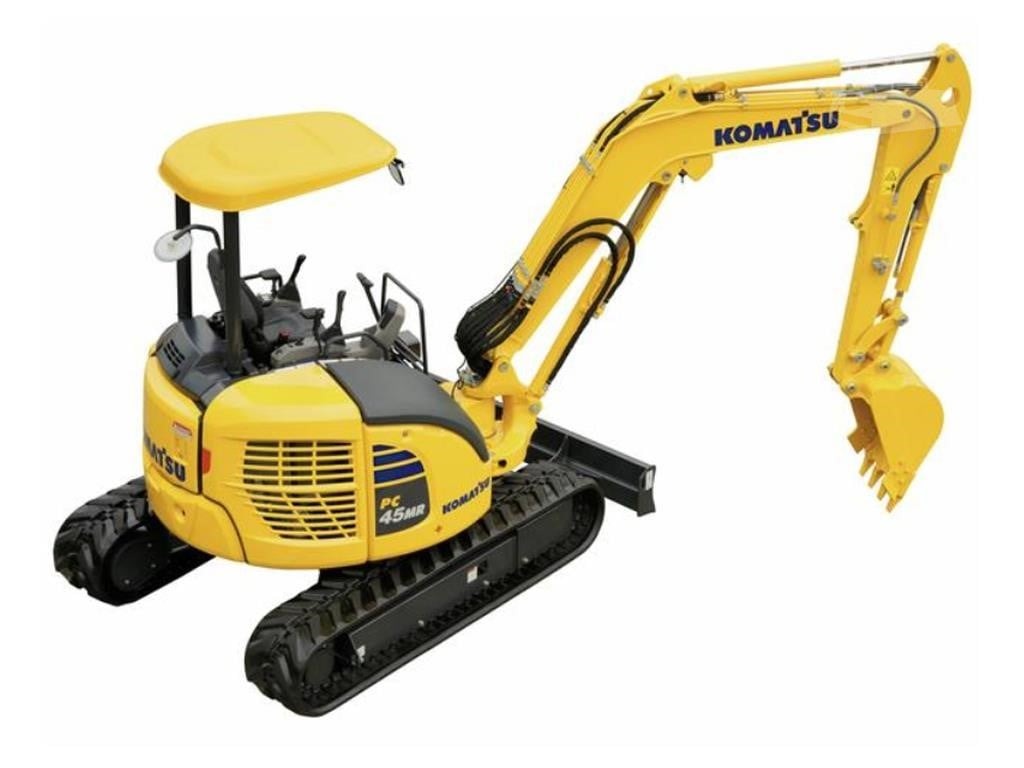

Komatsu PC45MR-5 Hydraulic Excavator New

Roll over or click to zoom in

KOMATSU

See more from KOMATSU

Model: PC45MR-5

3-Year Warranty

List $110,500.00

Log in to order this item

Komatsu PC45MR-5 Hydraulic Excavator


INCREASED FUEL EFFICIENCY & ENVIRONMENTAL PERFORMANCE


The PC45MR-5 hydraulic excavator is an hydraulic excavator with tight tail swing radius and swing boom that hug the machine to help with work in tight spaces. PC45MR-5 uses up to five percent less fuel than its MR-3 predecessors, with no loss of performance or productivity.


The short-tail PC45/55MR-5 delivers optimal power and digging speed, even in confined spaces where traditional machines can’t work: yards, road works, demolition sites, sewers, etc. Sturdy and very stable, it guarantees maximum safety and offers complete operator confidence in any working conditions.


Despite its compact size, the PC45/55MR-5 offers unequalled comfort. The spacious cab was developed with exceptional care to details, and the work environment is quiet and comfortable. Special attention is given to the operator: ergonomic and dedicated PPC controls, and, in option, an efficient air conditioning and ventilation system to guarantee optimal thermal comfort. A much larger cab door makes cab access a lot easier


POWERFUL AND ENVIRONMENTALLY FRIENDLY


• Low consumption EU Stage V engine
• Komatsu fuel-saving technology
• 6 selectable working modes
• Auto-deceleration and idle shutdown
• Dial type fuel control


FIRST-CLASS COMFORT


• Newly designed cab
• Improved operator convenience
• Multi-function monitor with high resolution 3,5” LCD color display
• Multiple accessories around the operator’s seat


MAXIMIZED EFFICIENCY



• Many configurations to suit the job at hand

SAFETY FIRST


• Neutral position detection system
• Emergency engine stop switch
• Seat belt caution indicator
• Large transport tie down points


EASY MAINTENANCE
• Tilting cab
• Wide opening engine hood
• Maintenance information displayed on the monitor KOMTRAX
• Komatsu Wireless Monitoring System
• 4G mobile communications
• Integrated communication antenna
• Increased operational data and reports

Similar models may be shown in addition to the featured model. Equipment may be shown with options. Specifications are subject to change without prior notice.



Engine



Model

Komatsu 4D88E-7, EPA Tier 4 Final emissions certified



Type

Water-cooled, 4-cycle, direct injection, cooled EGR



Aspiration

Naturally aspirated



Number of cylinders

4



Bore

3.46 in



Stroke

3.54 in



Piston displacement

134 in³



SAE J1995 - Gross

39 HP



ISO 9249 / SAE J1349 - Net HP

38 HP



Rated rpm

2,400



Fan drive method for radiator cooling

Mechanical



Govenor

All-speed control, electronic




Hydraulics



Type

HydrauMind (Hydraulic Mechanical Intelligence New Design) system



Number of selectable working modes

2



Pumps for

Boom, arm, bucket, and travel circuits



Type

Variable displacement, axial piston



Maximum flow

40.1 gpm



Pumps for

Swing and blade



Type

Fixed displacement gear



Maximum flow

16.6 gpm



Travel

2 x axial piston motor with parking brake



Swing

1 x axial piston motor with swing holding brake



Implement circuits

3,844 psi



Travel circuit

3,844 psi



Swing circuit

3,133 psi



Pilot circuit

455 psi



Blade circuit (Raise, Lower)

3,133 psi



Hydraulic Cylinders:

(Number of cylinders – bore x stroke x rod diameter)



Boom / 1

3.54 x 27.2 x 1.97 in



Arm/ 1

3.14 x 25.6 x 1.97 in



Bucket / 1

2.76 x 22.8 x 1.77 in



Boom swing / 1

3.54 x 24.8 x 1.97 in



Blade / 1

4.33 x 5.5 x 1.97 in




Drives and Brakes



Steering control

Two levers with pedals



Drive method

Hydrostatic



Maximum drawbar pull

9,436 lbf.



Gradeability

30°



Maximum travel speed (auto-shift) high/low

2.9 mph/1.6 mph



Service brake

Hydraulic lock



Parking brake

Mechanical disc




Swing System



Drive method

Hydrostatic



Swing reduction

Planetary gear



Swing circle lubrication

Grease-bathed



Swing brake

Hydraulic lock



Swing lock

Mechanical disc brake



Swing speed

9 rpm




Undercarriage



Center frame

X-frame



Track frame

Box-section



Track type

Sealed



Track adjuster

Hydraulic



Number of shoes (each side)

39



Number of carrier rollers (each side)

1



Number of track rollers (each side)

4




Coolant and Lubricant Capacity (Refilling)



Fuel tank

17.2 US gal



Coolant

2.4 US gal



Engine

2.2 (2.0) US gal



Final drive (each side)

0.2 US gal



Hydraulic tank

14.5 (5.3) US gal




Operating Weight (Approximate)



NOTE

Operating weight including 8 ft. 8 in one-piece boom, 5 ft. 7 in arm, SAE heaped 0.18 yd3 bucket, blade, rated capacity of lubricants, coolant, full fuel tank, operator, and standard equipment.



Operating Weight (With ROPS Canopy, Rubber Shoe)

10,737 lbs.



Ground Pressure (With ROPS Canopy, Rubber Shoe)

3.98 psi



Operating Weight (With ROPS Cab, Rubber Shoe)

11,001 lbs.



Ground Pressure (With ROPS Cab, Rubber Shoe)

4.12 psi


Features

•

Standard Equipment


• ENGINE
• Air cleaner, double element with auto dust evacuator
• Cooling fan, suction type
• Side by side cooling package
• ELECTRICAL SYSTEM
• Alternator, 12 V/55 A
• Auto deceleration
• Battery, 1 x 12 V/72 Ah
• Starting motor 12 V/2.3 kW
• Working light on boom
• Working light on cab or canopy
• HYDRAULIC SYSTEM
• Auxiliary hydraulics with selector valve
• GUARDS AND COVERS
• Fan guard structure
• Thermal guard
• UNDERCARRIAGE
• Shoe, 400 mm 16″ rubber shoe
• OPERATOR ENVIRONMENT
• 12 V x 1 power supply
• Automatic two-speed travel control
• Lock lever auto lock function
• Monitor panel, 3.5″ color display
 • Operator identification function
• Rear view mirrors (RH, LH, rear)
• Seat belt, 76 mm 3″ retractable
• Suspension seat (mid height)
• Travel alarm
• Travel lamp
• Two-post ROPS canopy
• WORK EQUIPMENT
• Arm — 1695 mm 5’7″ arm assembly with piping
• Backfill blade
• Boom — 2640 mm 8’8″ boom assembly with piping
• OTHER EQUIPMENT
• Auto idle shutdown function
• KOMTRAX® Level 5 – cellular based
• Swing holding brake

Optional Equipment


• UNDERCARRIAGE
• Road Liner track (400 mm 16″)
• Steel track (400 mm 16″)
• OPERATOR ENVIRONMENT
• Cab with hinged door, air conditioner, radio ready, auxiliary input (3.5 mm jack) ready
• Proportional Control Joysticks
• WORK EQUIPMENT
• Angle dozer blade
• Wide variety of attachments
