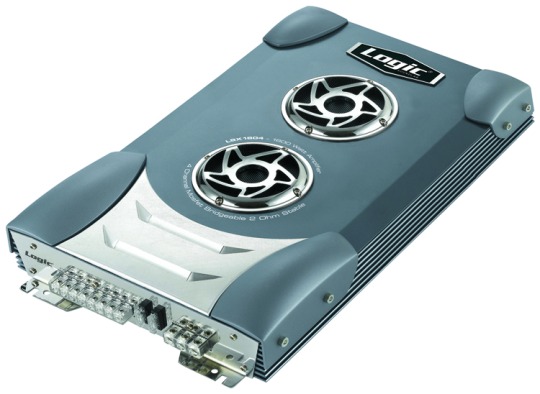

Logic 1800 Watt 4 Channel MOSFET Power Amplifier

Logic 1800 Watt 4 Channel MOSFET Power Amplifier, 2 OHM Stable Stereo, MAX Power (@ 2 OHM): 4 x 450W , RMS Power (@ 4 OHM): 4 x 225W, Built-in Variable Low Pass Filter: 40Hz – 160Hz, Built-in Variable High Pass Filter: 40Hz – 1000Hz (1/2 CH) 40Hz – 600Hz (3/4 CH)

Features

• 2 OHM Stable Stereo • MAX Power (@ 2 OHM): 4 x 450W • RMS Power (@ 4 OHM): 4 x 225W • Built-in Variable Low Pass Filter: 40Hz – 160Hz • Built-in Variable High Pass Filter: 40Hz – 1000Hz (1/2 CH) 40Hz – 600Hz (3/4 CH) • Built-in Variable Bass Boost Control: 0 ~ +18dB@45Hz • Built-in Variable Subsonic Filter: 20Hz ~ 55Hz • Input model (2CH/4CH) • Dimensions: 17.17"(W) x 9.57"(L) x 2.76"(H) • PWM Controlled DC to DC Switching Power Supply • Built-in Cooling fan with Chrome Grill

• 2 OHM Stable Stereo • Bridgeable and Tri-mode Capable • Remote bass control with backlight • Line in / Line out • RCA jack • High level inputs • LED power and protection indicators • 0.01% THD (4 OHM) • Signal to Noise Ratio 98dB • Speaker and Thermal Protection Circuit • Channel Separation: Better than 60dB
