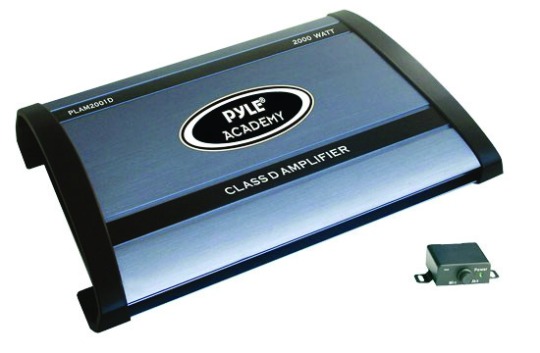

| • Class D Monoblock Power Amplifier
• RMS Power @ 4 Ohms: 1x500 W • RMS Power @ 2 Ohms: 1x800 W • RMS Power @ 1.3 Ohms: 1x1200 W • Maximum Power Output 2000W Mono • Mono Block Sub woofer Amplifier • Frequency Response 15 Hz-150 Hz (±3dB) • Output Power @ 14.4v DC, 50Hz • 1 Ohm Stable • MOSFET Power Supply • PWM ( Pulse-Width-Modulation ) System | • Glass Epoxy PCB
• Silver RCA Inputs • Custom Terminal Block for Speaker Connection • Thermal / Overload / Short Circuit Protection • Variable Subsonic Filter (15Hz - 55Hz 24dB / Octave) • Remote Bass Boost • Input Impedance: 10K Ohms • Soft Turn On/ Off • Advanced Protection Circuitry • S/N Ratio: >90dB • Dimensions:9.76''W x 2.28''H x 11.42''L |
